SERVO VIEWER Surface Estimation

Surface Estimation is a PC software tool that can estimate the machining surface which is close to the actual machining result.

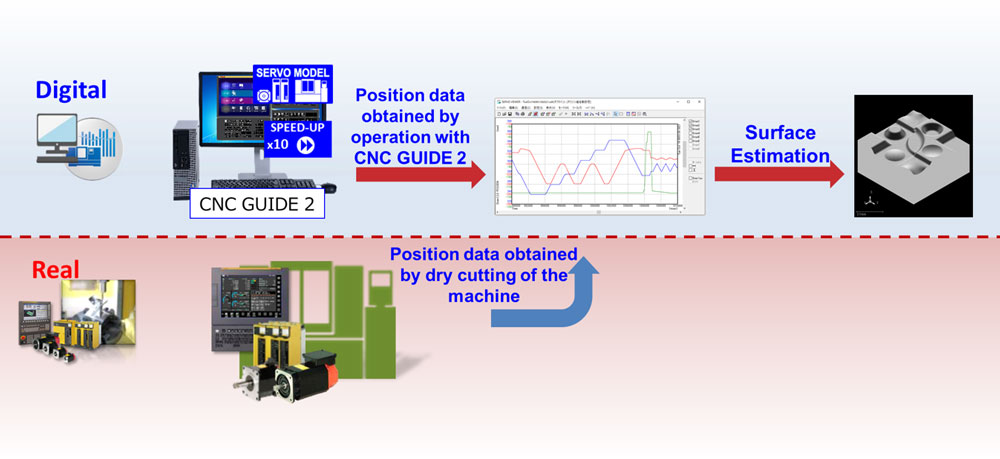

There are two ways for estimating the machining surface.

• Using the position data of each axis obtained by running the machining program with CNC GUIDE 2 to estimate machining surface without occupying the machine
• Using the position data of each axis obtained by dry cutting the machining program on the machine to estimate machining surface without actual machining

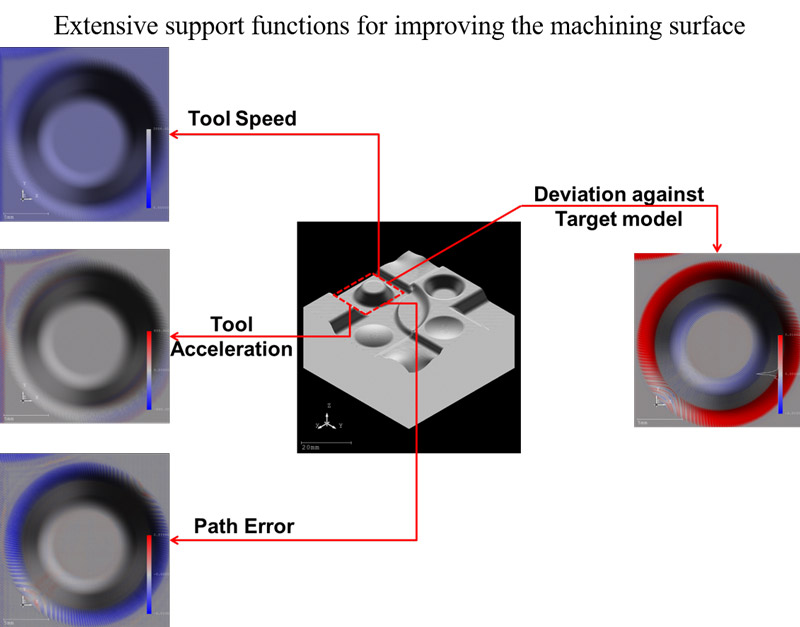

• Support machining surface improvement work by displaying information that affects surface quality onto the machining surface , such as Tool Speed, Tool Acceleration and Path Error.
• The result of surface estimation can be compared with other surface estimation results with different machining conditions, or with the target shape model(CAD model). For example, over-cut/uncut can be checked by comparing with CAD model.
